|Manufacturer:||Red Lion Controls - USA|

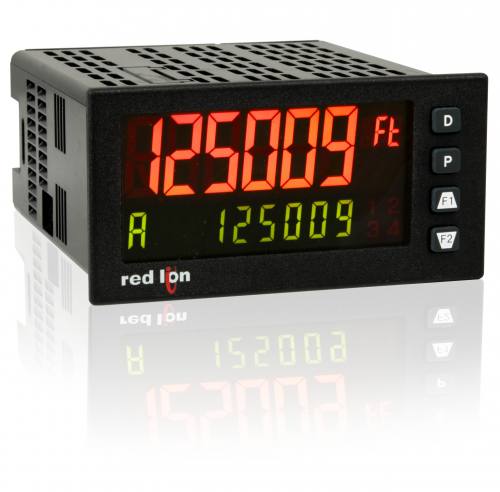

|Description:||Dual line dual counter and dual rate meter with math. Expandable with additional plug-in modules (see accessories)|
|Size:||1/8 DIN (50 mm x 97 mm)|
|Display:||Positive image LCD|
|Top Line:||6 digit, 0.71" (18 mm) tri-color backlight (red, green or orange)|
|Top Line display range:||-199,999 to 999,999|
|Bottom Line:||9 digit, 0.35" (8.9 mm) green backlight|
|Bottom line display range:||-199,999,999 to 999,999,999|
|Input:||Two digital inputs for sensors, encoders and magnetic pickups|
|Supply voltage:||50-250Vac and 21.6-250Vdc|
|Sensor power supply:||18VDC (60mA)|
|Outputs:||Up to Four Setpoint Alarm Outputs. Relay or transistor modules. Analog output module (see accessories)|
|Communications:||RS232, RS485, MODBUS, DeviceNet, Profibus (see accessories)|
|Counter math functions:||(ADD A+B, SUB A-B)|
|Rate math functions:||(SUM A+B, DIFFERENCE A-B, RATIO A/B, % of TOTAL A/A+B, % DRAW A-B/B)|
|:||Programmable Decimal point|
|:||Serial slave display mode|
|:||Min/max display for rate function|
|:||Programmable Function Keys/User inputs|
|:||Build-in USB port for programming. PC Software Available for Meter Configuration|
