Phoenix Contact programmable logic relay system

Combines PLC relays and analog modules with logic functions and intuitive software.

The Phoenix Contact programmable logic relay system is the first to combine logic, interface, and field connection levels in a single solution. This means that you can switch and control I/O signals using a single compact system. You can combine the logic module with the corresponding relays and analog modules as required. The modular structure opens up a range of applications.

At a glance:
You can flexibly extend the system, thanks to the wide choice of different modules. In addition to the basic module, extension modules are also available for more complex tasks. Eight freely-selectable PLC-INTERFACE terminal blocks are available for each logic module. Acquire and switch up to 48 I/O signals with one basic module and two extension modules.

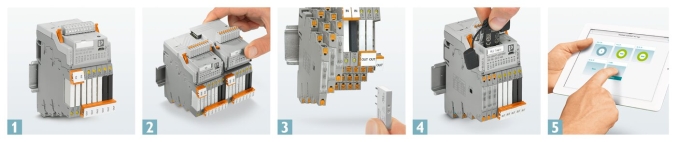

Components of the logic relay system.

1. Basic module.
   PLC logic processes 16 I/O signals with just one basic module, with an overall width of just 50 mm.


2. Extension modules.
   The basic module and the extension module are connected via integrated connectors - no tools required.


3. Memory module.
   Save programs or easily copy them to other devices.


4. Relay and analog modules.
   The modular design with the widest variety of relay and analog modules enables channel-specific assembly.


5. PLC logic app.
   Easy and quick parameter adjustments and monitoring via app for iOS and Android. Thanks to the app and the corresponding Bluetooth adapter, you can access the process data quickly and wirelessly.

Intuitive programming using LOGIC+
LOGIC+ is the intuitive software which allows you to implement your projects quickly. Select the right components for your task. The easy handling helps when it comes to configuration and startup of the products. The programs created can be simulated offline on the PC and tested online during operation.

Download the free LOGIC+ software and a number of complete programs for applications.
LOGIC+ is ideal for testing PLC logic in advance without hardware. For additional information on the LOGIC+ software, simply enter the web code in the search field on our website. Use this web link to access the 'Download links" from the Phoenix Contact product area.

Starter kit
Phoenix Contact have made available a Starter kit - PLC-LOGIC-STARTERKIT3 to help users develop their control programs quickly.

Downloads

• Phoenix Contact Programmable logic relay flyer (1.7M)
• Application examples for Phoenix Contact PLC Logic (278K)
• Phoenix Contact quick start guide for PLC Logic+ (334K)
