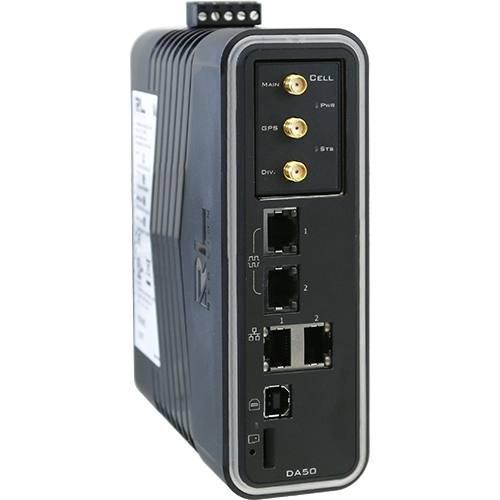

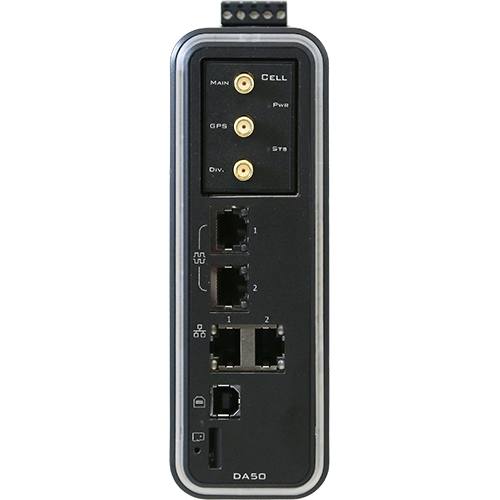

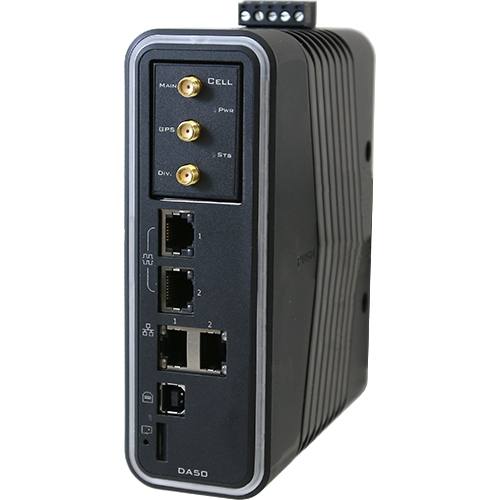

Red Lion DA50N0B1E0000000 FlexEdge Networking gateway, mixed serial, 4G cellular for EMEA
Red Lion DA50N0B1E0000000 FlexEdge Networking gateway, mixed serial, 4G cellular for EMEA
Red Lion DA50N0B1E0000000 FlexEdge Networking gateway, mixed serial, 4G cellular for EMEA
Red Lion DA50N0B1E0000000 FlexEdge Networking gateway, mixed serial, 4G cellular for EMEA
Red Lion DA50N0B1E0000000 FlexEdge Networking gateway, mixed serial, 4G cellular for EMEA
Mouse over image to zoom in
Image is for illustrative purposes only

Red Lion DA50N0B1E0000000 FlexEdge Networking gateway, mixed serial, 4G cellular for EMEA

Part: DA50N0B1E0000000

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads

Overview :Red Lion’s FlexEdge™ DA50N Secure Edge Networking Gateway offers reliable connectivity to deployed assets in both factory automation and remote applications. The DA50N features a wide operating temperature range and industrial certifications including UL Class 1, Div. II, and ATEX/IECEx approvals for reliable operations.
Typical application :Advanced networking, NAT and routing
Controller:DA50N0BNN0000000
Sled 1:DAS00CL9C4SEU000
Security :The DA50N offers robust security features, including a stateful firewall, NAT translation, and VPN connections. Designed with advanced networking capabilities such as port forwarding, dynamic DNS, and DHCP, this flexible system provides secure connectivity where you need it most.
Connectivity :Dual 10/100 Fast Ethernet ports enable optional split LAN/WAN functionality, and serial ports featuring up to 5,000 Vrms isolation enable users to connect serial assets to their digital transformation strategy.
Device Management :The FlexEdge Secure Edge Networking Gateway can be managed locally through direct device connection or remotely via SixView Manager® software, our flexible remote management software package designed to help increase productivity and reduce costs for organizations. With a web-based console and customized dashboard, users are able to remotely access, configure and manage critical device information from a central location.
Advanced Networking :LAN-to-LAN or LAN-to-WAN Connectivity
     :Integrated switching and routing
     :DHCP server/DHCP relay
     :Intrusion Protection Through Stateful Firewall
     :NAT Support For 1-to-1 and 1-to-Many Translations
     :25 VPN Connections for Secure Remote Access
     :Serial-to-IP communications
     :SNMP V1, V2, V3
     :IPSEC and SSL VPN Tunnels
     :Port Forwarding
     :Stateful Firewall
     :Access Control List (ACL)

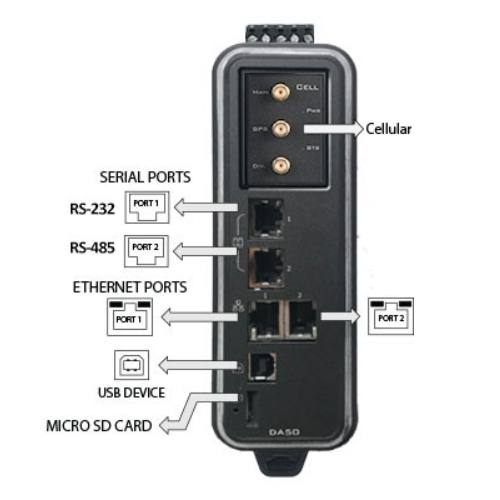

Ethernet ports :Two 10/100Base-T(X)
Serial ports :One isolated RS-232 serial port, one isolated RS-485 serial port

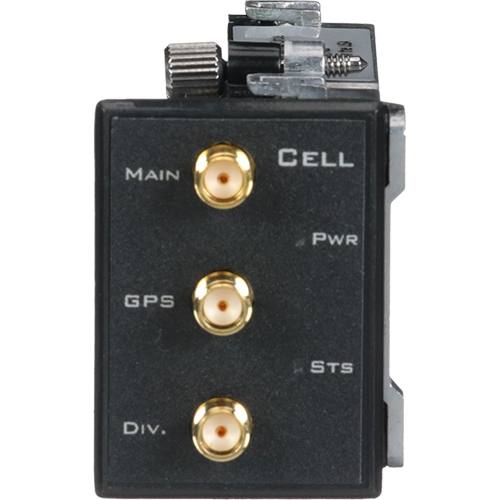

Sled ports :Adds 4G LTE communication with active GPS to any application
     :4G LTE Cat. 4 with 3G/2G fallback
     :Dual SIM slots
     :Built in active GPS
     :Controller-dependent modem or router functionality
     :4G Bands- B2(1900), B3(1800), B7(2600), B8(900), B20(800)
     :3G Bands- B2(2100), B8(900)
     :2G Bands- B3(1800), B8(900)
Inputs :One programmable analog or digital input
Outputs :One digital output
Onboard memory :1 GB flash
Expansion memory :Up to 256 GB, micro SD
Supply voltage :12-24 VDC +/- 15%
Operating temperature :-40 to 75 C
Certification :UL Class 1, Div 2,  ATEX / IECEx
Aditional Features :Intuitive diagnostic light ring for at-a-glance system status indication
    :Future-proof modular design accommodates field-installable sleds
