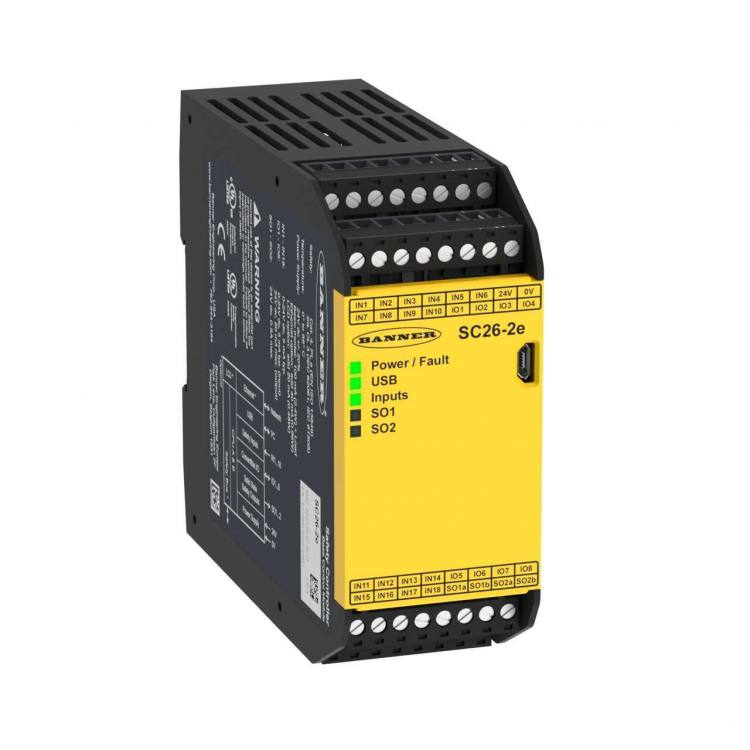

Banner SC26-2E (850657) Safety controller, no display, with Ethernet
Banner SC26-2E (850657) Safety controller, no display, with Ethernet
Mouse over image to zoom in
Image is for illustrative purposes only

Banner SC26-2E (850657) Safety controller, no display, with Ethernet

Part: SC26-2E
£1054.21
£1265.05 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads
  • Banner SC26-2 Safety Controller: Non Expandable
  • 26 Input
  • 2 pairs of PNP Safety Outputs (0.5 A each)
  • No Display
  • With Ethernet
  • USB
  • 8 Convertible Inputs
  • Removable Screw Terminals
  • 24 V dc; 140 mA

Power :DC
IP Rating :IP20
Device Type :Safety Controller
In-Series Diagnostics :No
Safety Module Type :Base Controller
LCD Display :No
Expandable :No
Dimension (H x W x D in mm) :110 x 45 x 129
Relative Humidity :90% @ 50° C
Max Operating Temperature ( °C) :55
Input Operation :Simultaneous or Concurrent
Number of Safe Inputs :26
Input Configuration :Configurable
Number of Convertible Inputs :8
Safety Input - Dual Channel (Dry Contact) :5-50 mA @ 24 V dc
Safety Input - Dual Channel (Solid-State) :50 mA @ 15 - 30 V dc
Safety Input - Reset :5-50 mA @ 24 V dc
Independently Controlled Safe Outputs :4
Output Configuration :2 OSSD Pairs
Non Safe Output Configuration :Up to 11 PNP
Non Safe Output Rating :80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
Safe Output Rating :OSSD 0.50 A max. @ 24 V dc
Splittable Safe Output :Yes
Power Consumption :0.14 A (controller only)
Response Time (ms) :See Software Configuration Summary
Supply Voltage :24 V dc +/- 20%
Terminal Type :Screw
Removable Terminals :Yes
Vibration :9-150 Hz at 1g occasional/0.5g continuous
PL Rating :e
Safety Category Rating :4
SIL Rating :3
SISTEMA :PFHd = 1.05 x 10-9
THC Rating :IIIC
Safety Input - Single Channel :5-50 mA @ 24 V dc
Input Resistance :150 Ω max. per lead
E-Stops/Rope Pulls :Yes
Safety Mat :Yes
Motor Speed :No
Two-Hand Controls :Yes
Muting :Yes
Gate Switch (NC/NC) Input :Yes
Gate Switch (NC/NO) Input :Yes
Gate Switch (OSSD) Input :Yes
Light Curtains/Scanner with EDM Input :Yes
Light Curtains/Scanner without EDM Input :Yes
Recovery Time :250 (typical), 400 (max)
EtherNet/IP :Yes
Modbus/TCP :Yes
PCCC :Yes
PROFINET :Yes
