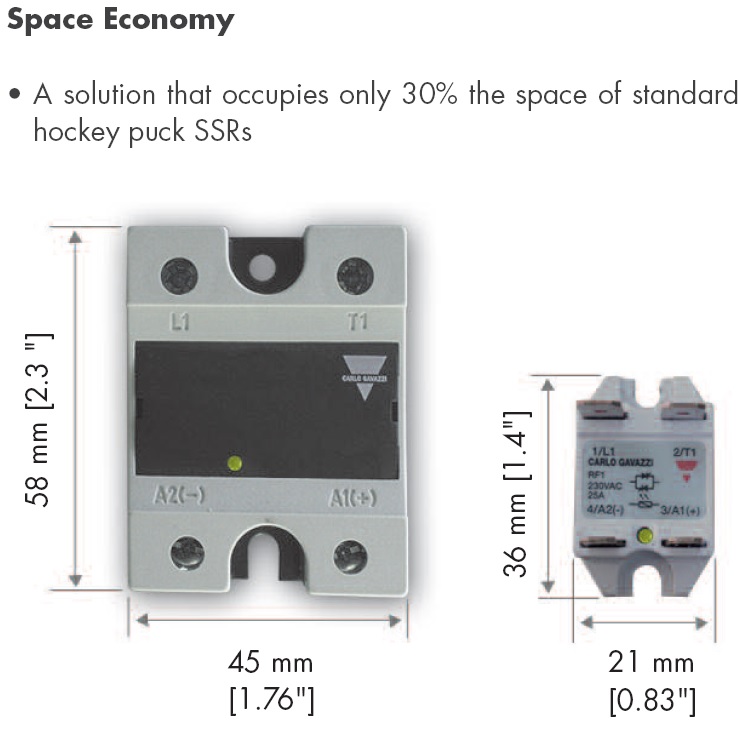

The Carlo Gavazzi RF1 mini puck solid state relay (SSR) complements the large range of solid state switching solutions with the addition of a new compact platform that occupies only 30% of the space normally required by standard hockey puck style solid state relays.
Despite the compact size, reliability is not compromised. Switching is done through back to back thyristors that are more robust compared to triacs. The use of wire bonding assembly technology adapted in the design of the RF1, ensures less mechanical and thermal stresses on the output chips, leading to a longer product lifetime.
The Carlo Gavazzi RF1 is the solution when space is a constraint and when trouble free frequent switching of resistive loads is required.
