Phoenix Contact CGS cable door routing system

Cable and conductor routing.

The cable routing system enables optimum installation of the cables for the operator panels in the control cabinet door.

Mouse over image or click to zoom in.

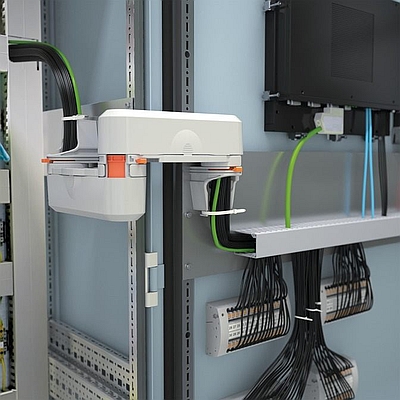

The swivel arm of the cable routing system makes it particularly easy and safe to install your conductors, cables, and cable harnesses for the control cabinet door or swivel mounting frame. This solution is time-saving, as the patent-pending swivel joints can be opened and pre-assembled cables can be fed through or pulled through without using any tools. Up to 100 x 1.5 mm2 conductors are routed using a single CGS routing system for the control cabinet door.

Downloads

Phoenix Contact CGS cable door routing system flyer (760K)

Found 3 items

Phoenix Contact 3071401 CGSA 50 cable routing system (swivel link opening)

Install pre-assembled conductors, cables, and cable harnesses easily, thanks to innovative swivel joints
Subsequent wiring is quick and easy, thanks to swivel joint openings that can be operated without tools

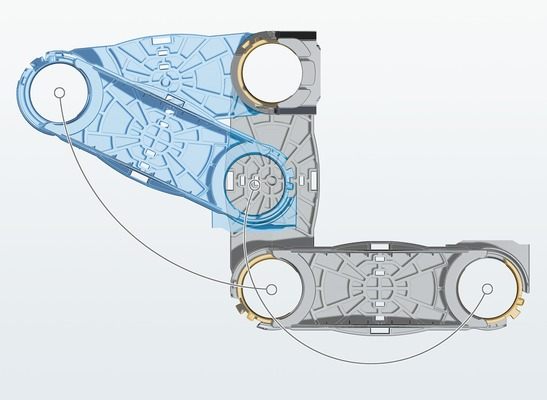

Cable routing for the control cabinet door can be planned in the CAD system, thanks to the defined installation space and swivel range
Easy planning and production of cable harnesses, thanks to the pre-defined cable length

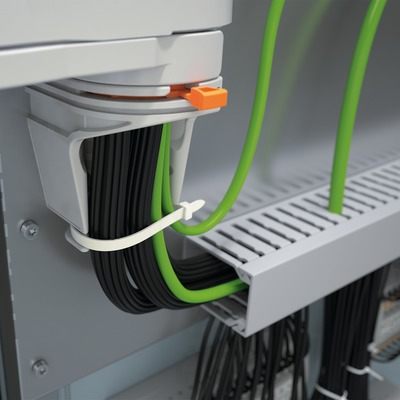

Quick and easy mounting, thanks to integrated flanges with strain relief

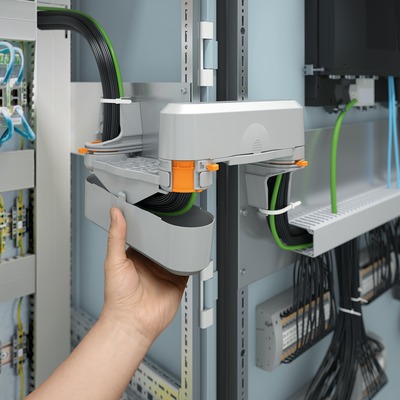

Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools
High-grade elastic and mechanically resilient plastic, certified according to UL94 for flammability rating V0
