|Manufacturer :||Red Lion Controls - USA|
|Part number :||PX2CVR00|

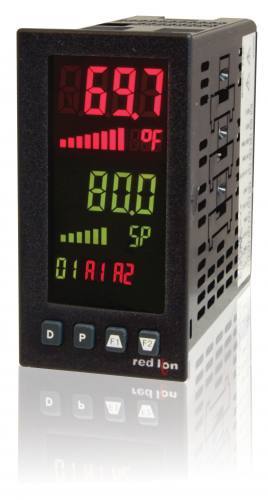

|Description :||Dual line PID controller (vertical). Expandable with additional modules (see accessories)|
|Size :||1/8 DIN (50 mm x 97 mm) vertical|
|Display :||Negative image LCD with tri-color backlight|
|:||The display is divided into seven independently programmable color zones:|
|:||Line 1, Line 2, Universal Annunciators (1-4) & Mnemonics|
|:||Line 1 and 2 4 digits each line|
|Display Range :||-1999 to 9999|
|Display Units :||Programmable 3 digit units annunciator|
|Bar Graph :||Programmable 8 segment bar graph|
|Universal Annunciator 1 thru 4 :||Programmable 2 digit annunciator|
|Vertical Model Digit Size :||Line 1 - 0.51" (13 mm). Line 2 - 0.44" (11.2 mm)|
|Ramp Soak Capability :||16 profiles with up to 20 step changes.|
|Segments per Profile :||20 ramp or hold segments (linkable up to 320 segments)|
|Segment Time :||0 to 999.9 or 9999 minutes; can be extended by linking|
|Signal input :||Universal DC current/voltage, Thermocouple, PT100 and resistance|
|:||Five DC current ranges, up to 2A|
|:||Six DC voltage ranges, up to 200V|
|:||Thermocouple, T, E, J, K, R, S, B, N and C|
|:||Resistance, 100ohm, 1K ohm and 10K ohm|
|Supply voltage :||40-250Vac and 21.6-250Vdc|
|Outputs :||Up to Four Setpoint/Alarm outputs. Upto 16 alarms with boolean logic.|
|:||Relay or transistor modules|
|:||Analog output module, 10Vdc or 20mA (see accessories)|
|Communications :||RS232, RS485, MODBUS, DeviceNet, Profibus (see accessories)|
|Protection :||NEMA 4X/IP65|
|Other features :||Simple scaling method.|
|:||16 point scaling for non-linear inputs|
|:||Programmable Decimal point|
|:||Adjustable display update times|
|:||Tranducer excitation power|
|:||Programmable Function Keys/User inputs|
|:||PC Software Available for Meter Configuration via USB|
|Downloads :||PAX2C information downloads. Crimson 2.1 configuration software.|
